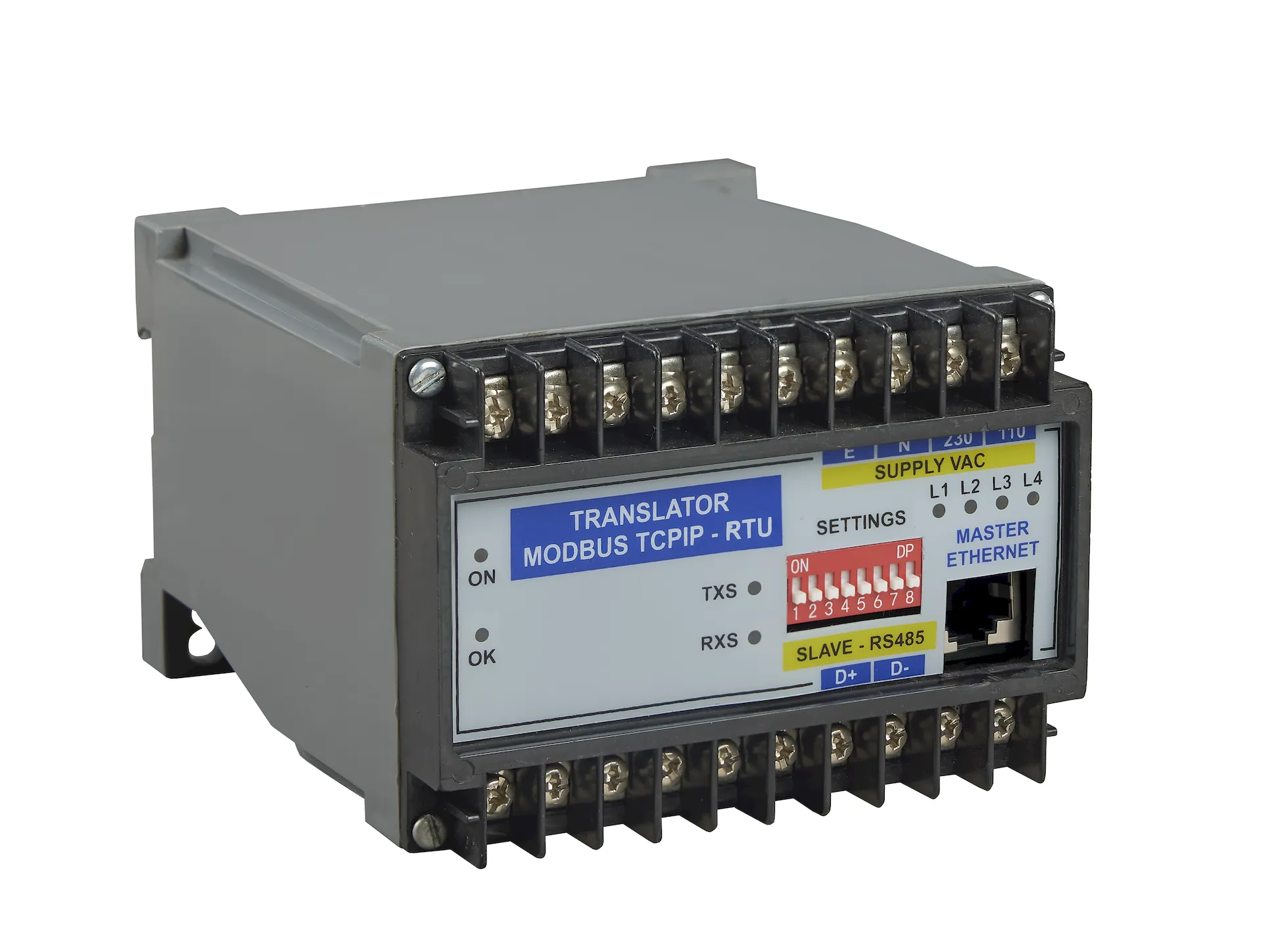

TRANSLATOR – MODBUS TCP-IP to MODBUS RTU Converter

Short description: A rugged microcontroller-based Ethernet-to-Serial protocol converter that translates MODBUS TCP-IP protocol (Ethernet master) to MODBUS RTU protocol (RS232/RS485 slave). Ideal for SCADA and industrial automation systems requiring TCP to RTU bridging.

Key Features

• Ruggedised, microcontroller-based DIN-rail mount system.
• Converts MODBUS TCP-IP protocol (Ethernet master side) to MODBUS RTU protocol (RS232/RS485 slave side).
• Supports multiple RS485 MODBUS RTU slave units on the slave side.
• Reads/writes all MODBUS slave registers: coil status, input status, holding registers, and input registers.
• User-selectable MODBUS RTU baud rate via DIP switch: 9600, 19200, 38400, 57600 bps.
• Fixed MODBUS TCP-IP master baud rate: 115.2 kbps; station ID: 1.
• On request: Slave-side MODBUS TCP with master-side MODBUS RTU available.
• LED indications for power, system OK, Ethernet status, and master/slave Tx/Rx for easy diagnostics.
• DIN rail ABS enclosure for industrial environments.

Technical Specifications

• Master Side: Ethernet (RJ45 connector), MODBUS TCP-IP protocol
• Slave Side: RS232 (9-pin D-type) or RS485 (2-wire screw terminal), MODBUS RTU protocol
• Baud Rates: Slave side: 9600 / 19200 / 38400 / 57600 bps (DIP switch selectable); Master side: fixed 115.2 kbps
• Station ID: Fixed at 1
• LED Indications:
  • ON (Red): Power ON
  • OK (Red): System OK
  • TXM/RXM (Red/Green): Master Tx/Rx
  • TXS/RXS (Red/Green): Slave Tx/Rx
  • L1–L4: Ethernet & watchdog status LEDs
• Mounting: DIN rail, ABS molded 20-terminal box
• Dimensions: 70 × 100 × 114 mm (H × W × D)
• Power Supply: 230 VAC / 110 VAC ±10%, 1-phase, 50 Hz
• Connections: Screw-type for RS485 & supply; 9-pin D-type for RS232; RJ45 for Ethernet
