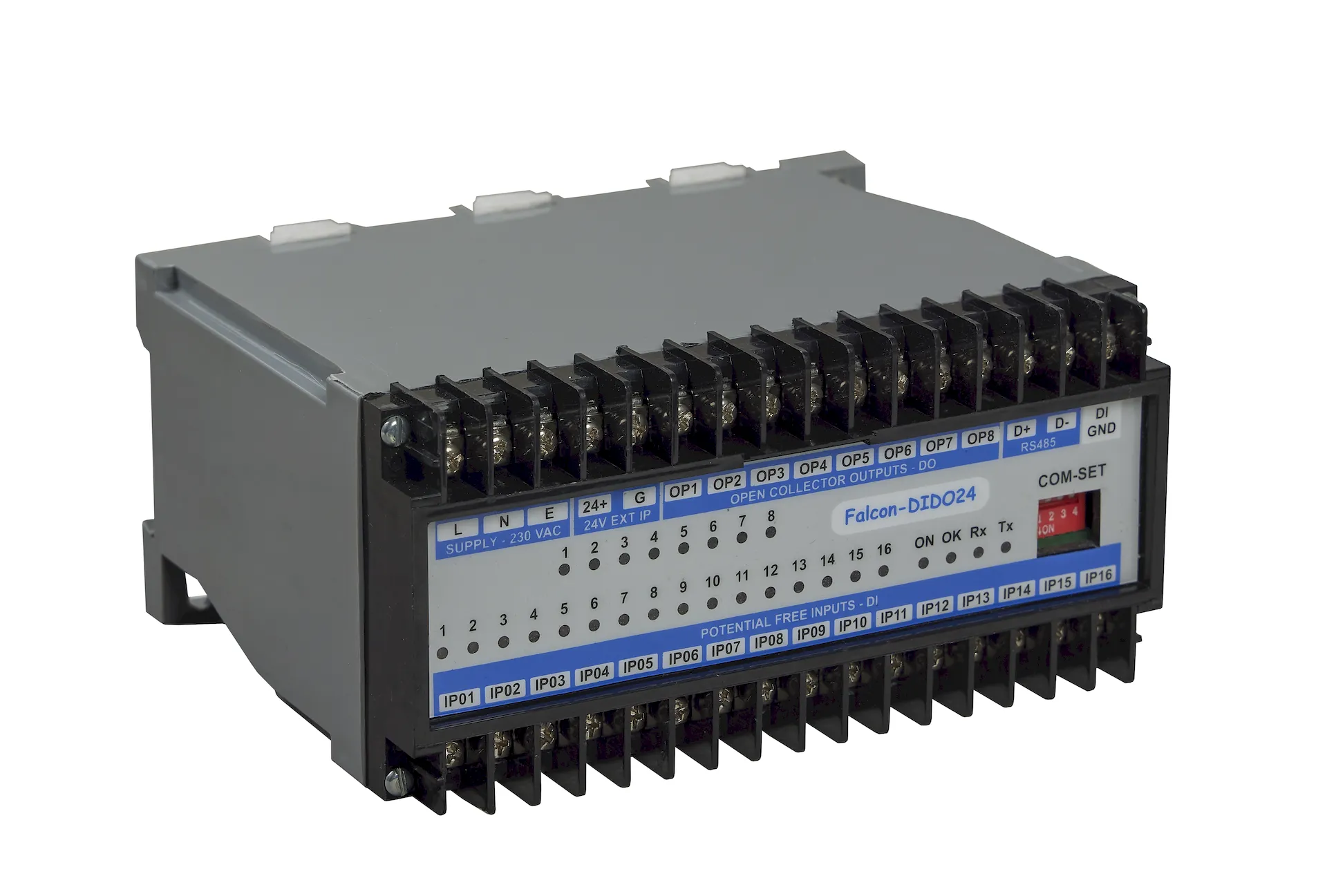

Falcon DIDO24 – Digital I/O Module
Short description: A rugged microcontroller-based digital I/O module with 16 optically isolated inputs, 8 optically isolated outputs, and RS485 MODBUS RTU communication. Ideal for SCADA, alarm/trip monitoring, and supervisory control in industrial automation.
No serial information available.
Key Features
- Microcontroller-based rugged design for industrial environments.
- 16 optically isolated digital inputs for potential-free or 24VDC level signals.
- 8 optically isolated open collector digital outputs for driving relays or external loads.
- Optional relay outputs available through external relay card.
- Ideal for SCADA applications and PLC slave module use.
- Applications: sensing level, proximity, and door switches, alarm/trip conditions, motor/pump status, equipment monitoring.
- RS485 (2-wire) communication with MODBUS RTU protocol.
- DIP switch for baud rate (9600/19200) and station ID (1–8) configuration.
- Front panel LED indications for power, system OK, Tx/Rx, 16 inputs, and 8 outputs.
- DIN rail mounting for quick and easy installation.
Technical Specifications
- Digital Inputs: 16 optically isolated inputs (potential-free or 24VDC)
- Digital Outputs: 8 open collector outputs (optically isolated); optional relay outputs via external card
- Input Isolation: 1 kVDC
- Indications: LED for Power, System OK, Tx, Rx, 16 inputs, 8 outputs
- Excitation Supply: External 24VDC required
- Communication: RS485, 2-wire, MODBUS RTU protocol
- Baud Rate: 9600 / 19200 bps; 8 data bits, 1 stop bit, no parity; DIP switch selectable
- Station ID: 1–8, settable via DIP switch
- Polling Time: 10 ms (MODBUS)
- Power Supply: 230 VAC ±10%, 1-phase, 50 Hz
- Operating Temperature: 5°C to 55°C
- Storage Temperature: –10°C to 70°C
- Enclosure: DIN rail mount ABS molded, 32-terminal box; Size: 70 × 150 × 114 mm (H × W × D)
