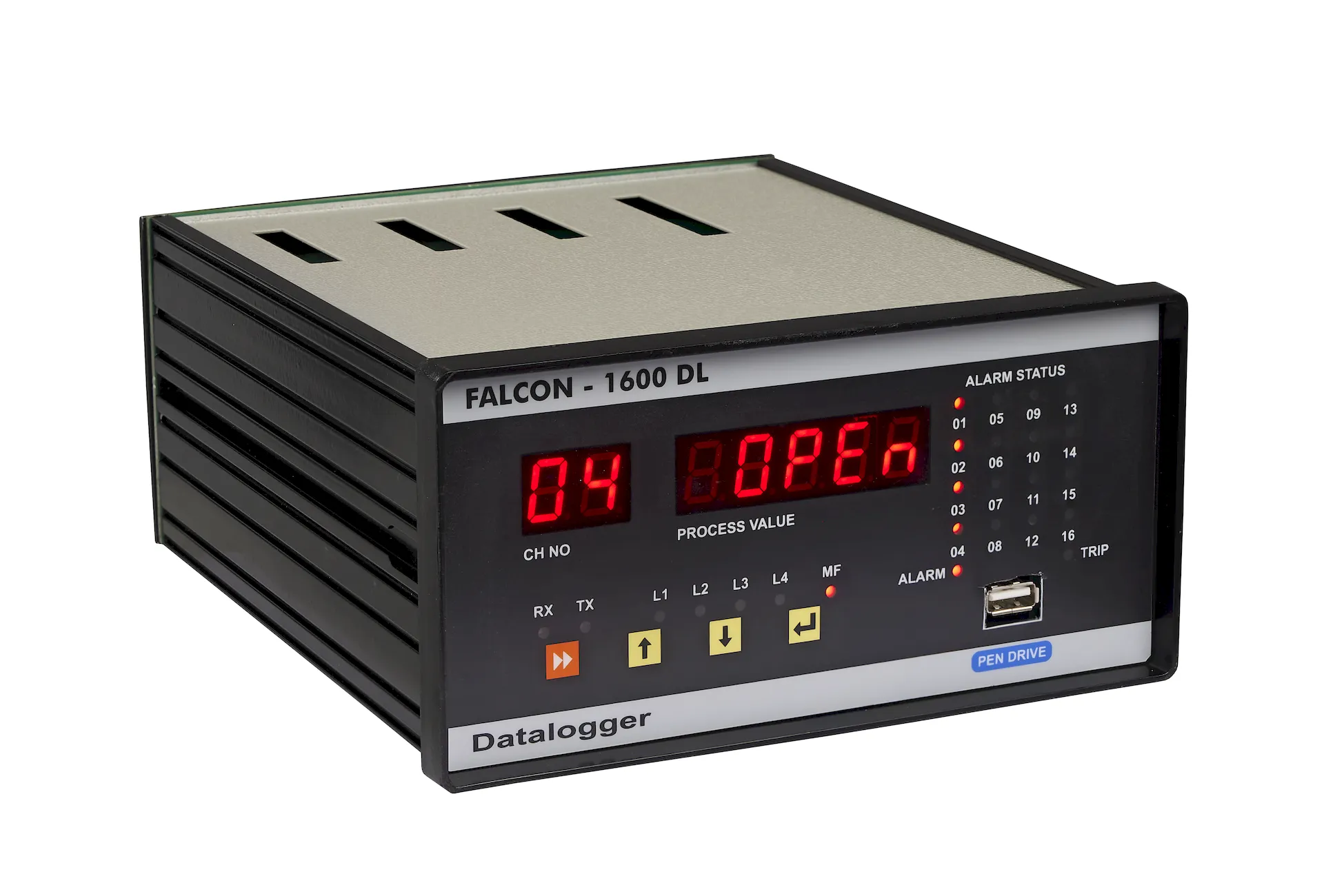

Falcon 1600 DL – Multi-Channel Data Logger

Short description: A rugged, microcontroller-based, multi-channel data logger with analog inputs and RS232/RS485 communication, ideal for standalone or SCADA-connected industrial applications.

Key Features

• Rugged, state-of-the-art microcontroller-based system.
• Accepts mA, RTD, voltage, or thermocouple inputs in steps of 4 channels (up to 16 channels).
• Optional control output for each channel with front indication.
• User-configurable input spans for mA and volt inputs.
• Large internal memory:
  • 13,150 readings per channel (16-channel model)
  • 35,700 readings per channel (4-channel model)
• In-built pen drive interface (up to 4GB = ~100 million readings per channel).
• RS232 port with ASCII protocol; optional RS485 with MODBUS RTU protocol (with/without backup recovery).
• Optional SCADA connectivity.
• Auto/manual printing via parallel printer port.
• Programmable high/low alarm limits per channel.
• Real-time logging with adjustable logging intervals.

Technical Specifications

• Inputs: RTD Pt100 (3-wire); 4-20 mA DC; DC Voltage: 1V, 4V; Thermocouples: J, K, R, S, T, B, E (factory-set combinations per 4 channels)
• Channels: Max 16 channels (in steps of 4)
• Display: 7-segment red LED; 2-digit channel number, 5-digit process value (with sign)
• Resolution: RTD Pt100: 0.1°C; TC J, K, R, S, B, E: 1°C; T type: 0.1°C; Volt: 0.001; mA: 0.01
• Scan Rate: 125 ms per channel (16 channels in 2 sec)
• Accuracy: ±0.5% of FSR ±1 LSD; ±1°C for CJC
• Data Logging: Internal memory as above; adjustable logging interval (min/sec); enable/disable logging; optional SCADA backup
• Printing: Auto/manual printing; Centronics parallel printer port; interval: 1 to 240 min
• Outputs: Common alarm relay (230 VAC, 1A); optional individual channel control outputs (HI/LO limits) via external relay module
• Connections: All male/female connectors for inputs & supply; screw type for alarm; D-type for RS232/printer/pen drive
• Power Supply: 230 VAC ±10%, 50 Hz (optional 110 VAC ±10%, 50 Hz)
• Mounting: Panel mount; Bezel: 96 × 192 mm (H × W); Depth: 250 mm; Cut-out: 92 × 186 mm (H × W)
