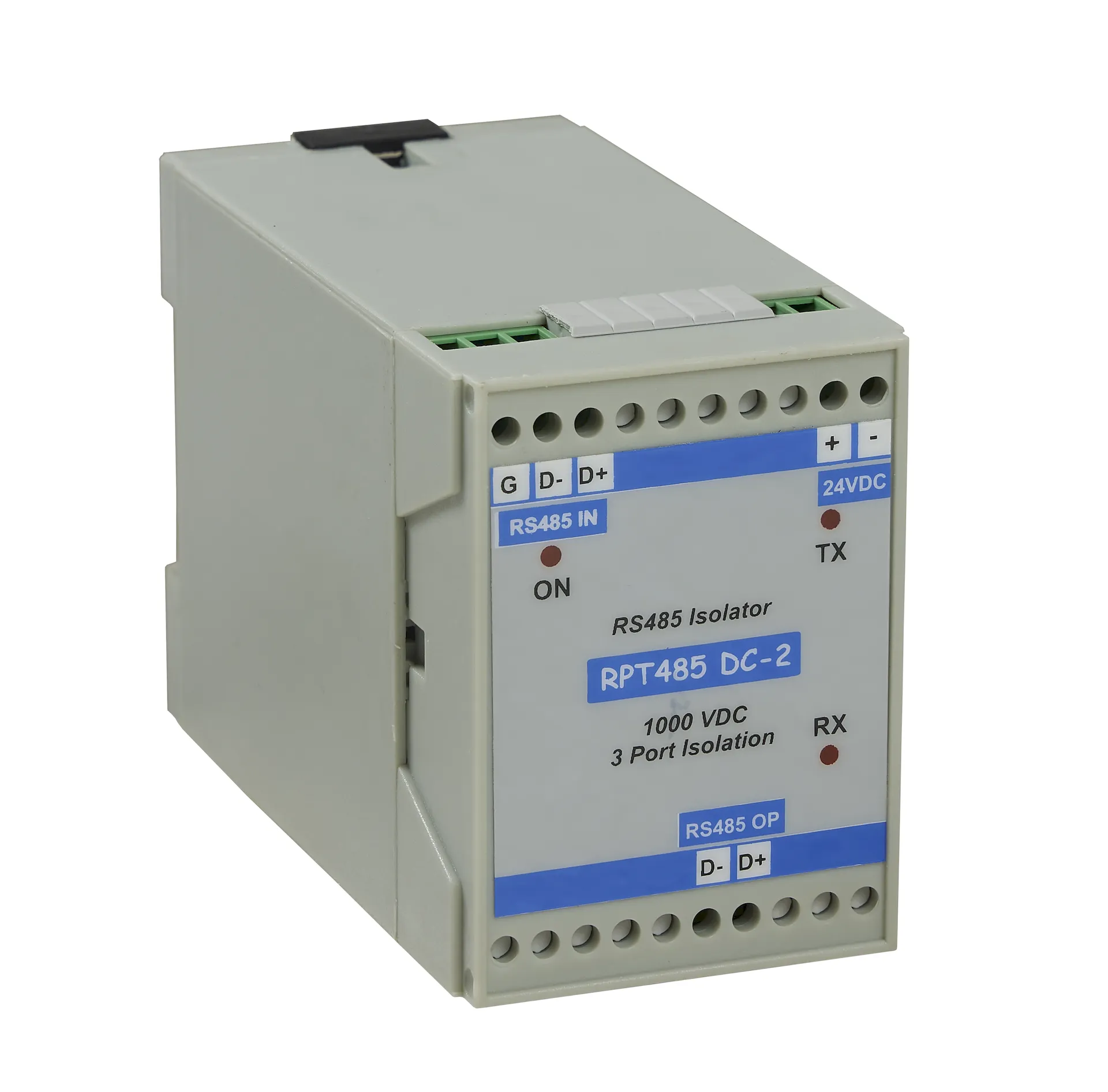

RPT485DC – RS485 Repeater
Short description: A rugged, DC-powered, bidirectional RS485 repeater with 1000VDC optical isolation. Designed to extend communication distances beyond 1.2 km and provide reliable protection for PLCs, controllers, and other industrial devices.
No serial information available.
Key Features
- 24VDC powered RS485 repeater for industrial applications.
- Extends RS485 communication beyond 1.2 km.
- Provides 1000VDC optical isolation between input, output, and supply.
- Supports reliable multi-drop RS485 communication.
- Compact DIN rail mount ABS enclosure.
- Prevents data loss and protects communication ports of PLCs, controllers, etc.
- Autobaud selection ensures compatibility with various systems.
Technical Specifications
- Supply: 24VDC ±10%, 1.8W max
- Input: 2-wire RS485, bidirectional
- Output: RS485, bidirectional
- Baud Rate: Autobaud selection, 300 – 19200 baud
- Isolation: 1000VDC between input, output, and supply
- Connections: RS485 on screw terminals, USB 2.0 B-Type connector (for USB485D version)
- Cabinet: DIN rail mount, ABS moulded, 8-terminal box; Size: 75 × 22.5 × 110 mm (H × W × D)
